PRECISION ED Series
The Precision ED series of scopes use extra-low dispersion (ED) glass, which effectively eliminates chromatic aberration (colour fringing), delivering sharp, natural images with accurate color reproduction. Combined with precise turrets and shock / water / fog resistant construction make these a great choice for target shooting or hunting.

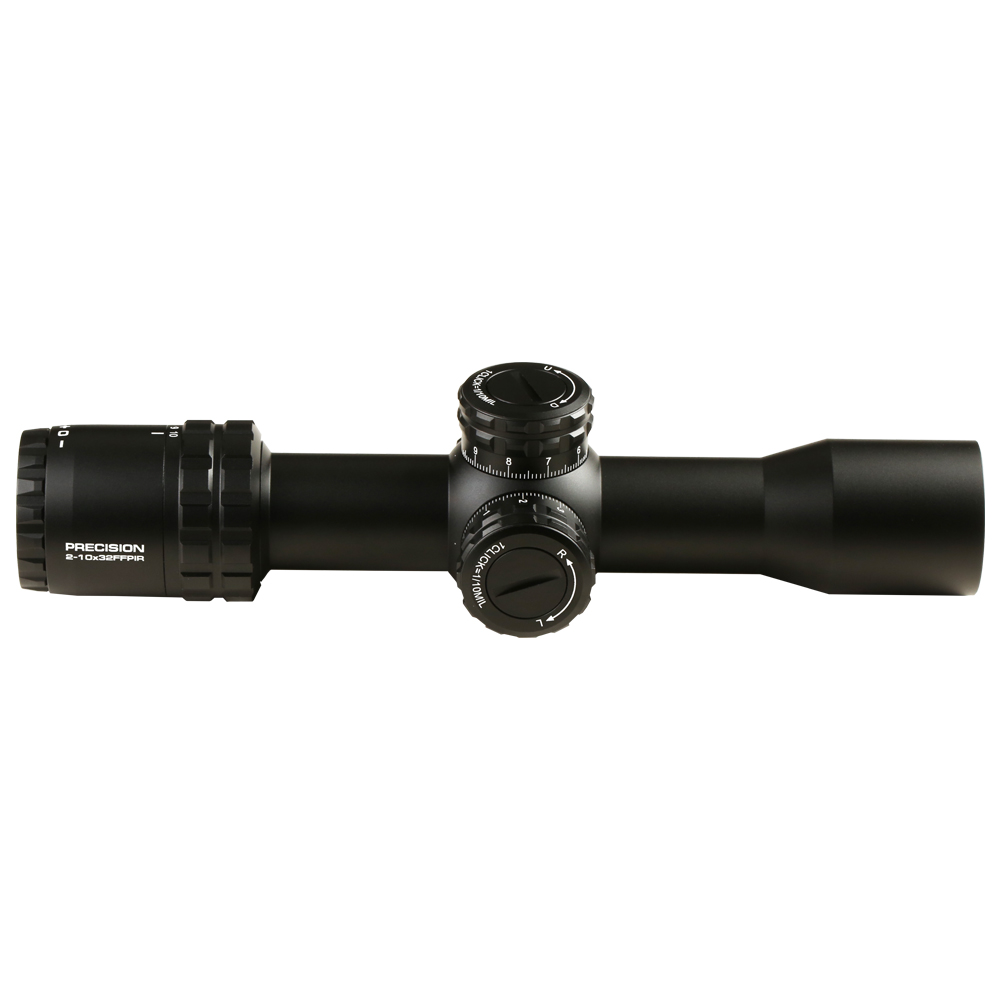

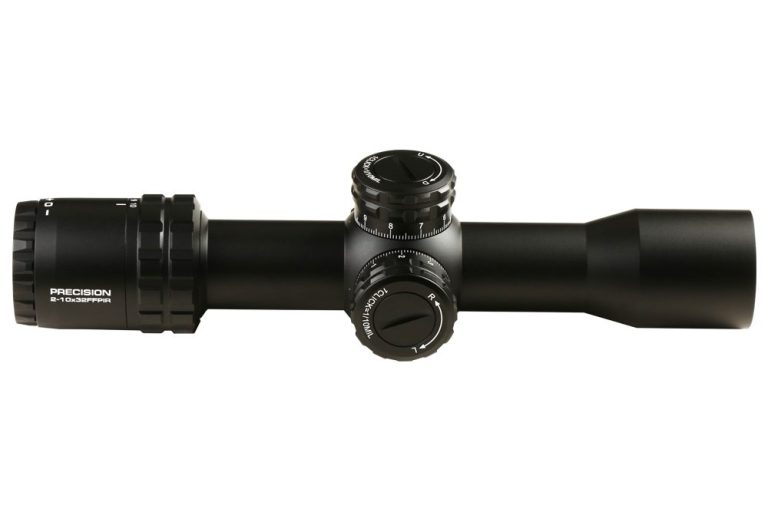

ED 2-10x32 FFP IR
ED30210
First Focal Plane (FFP) Design: The reticle is positioned on the first focal plane, scaling proportionally with magnification, allowing for precise range estimation and ballistic compensation at any magnification level.
ED Optical System: Uses high-quality optical glass and fully multi-coated lenses, delivering exceptional image clarity and color fidelity, achieving over 91% light transmission.
Compact Design: With a compact length of approximately 252 mm, and weight around 587 grams, it is easy to carry and mount, suitable for a variety of firearm platforms

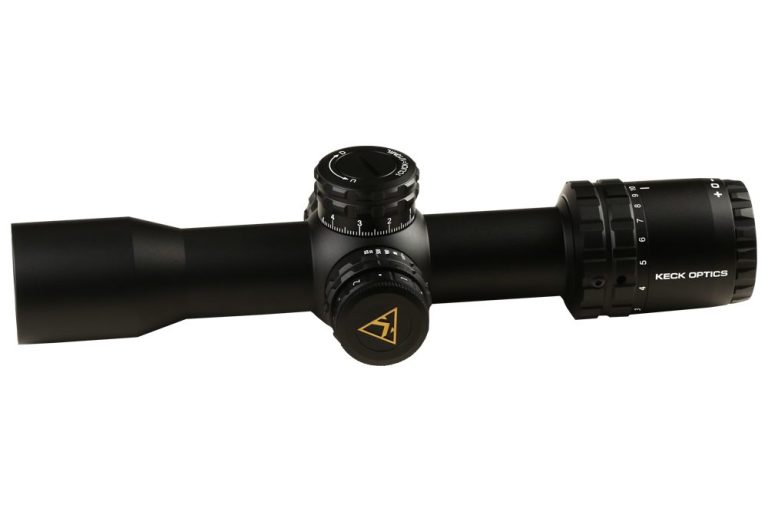

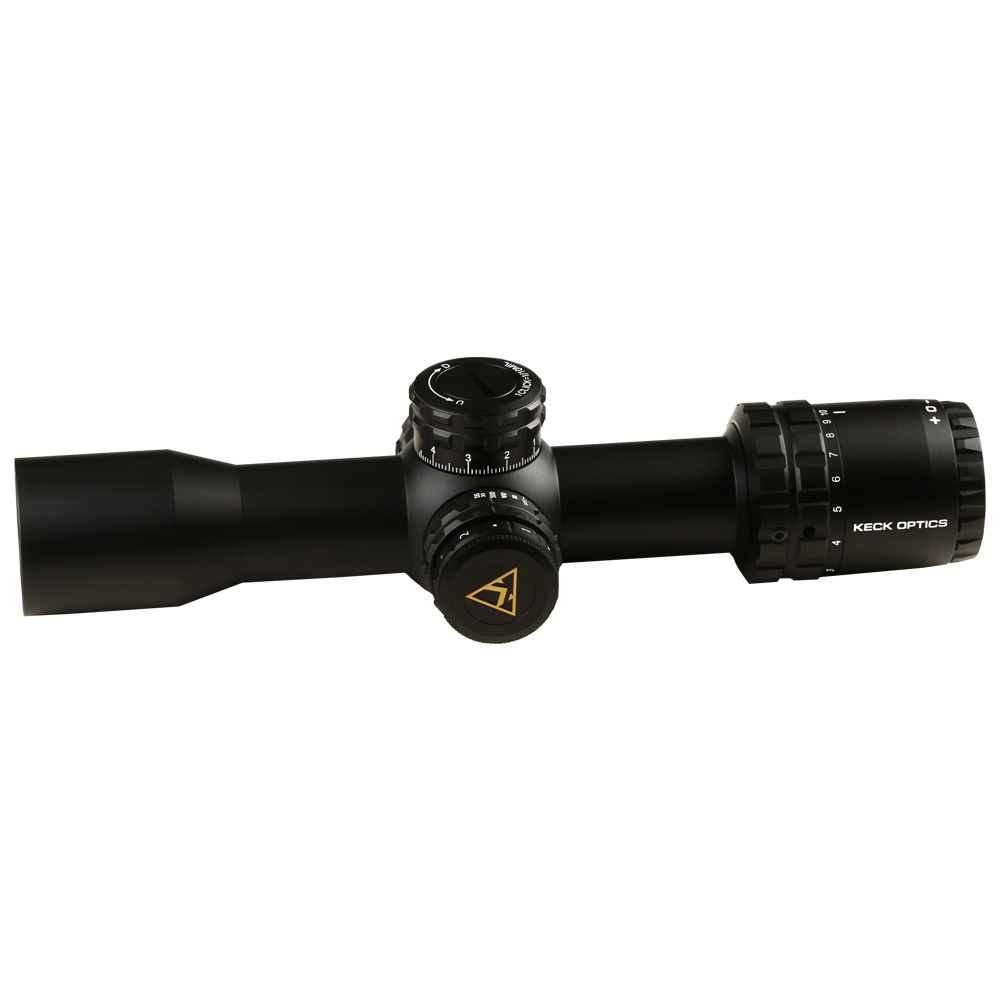

ED 2-10x32 SFP IR
ED30210S
Second Focal Plane (SFP) Design: The reticle is positioned on the second focal plane, maintaining a consistent size as magnification changes, allowing for precise aiming at different magnifications.
ED Optical System: Uses high-quality optical glass and fully multi-coated lenses, delivering exceptional image clarity and color fidelity, achieving over 91% light transmission.
Compact Design: With a compact length of approximately 252 mm, and weight around 587 grams, it is easy to carry and mount, suitable for a variety of firearm platforms
RETICLE CHOICES
Each model has a precision eteched reticle designed to maximise the optical range of the scope.

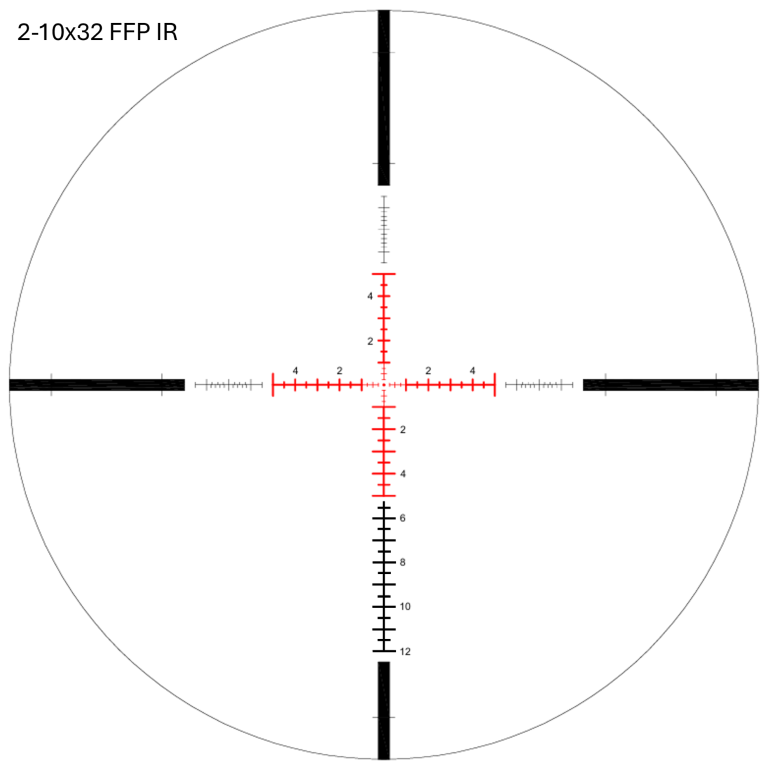

SS1
The Precision ED 2-10x32 FFPIR uses a Mil line reticle with a 0.1 mil centre dot.
A First Focal plane reticle will scale with the magnification sitting, offering true mil scale at all powers.
The line thickness are designed to offer effective use over the magnification range.

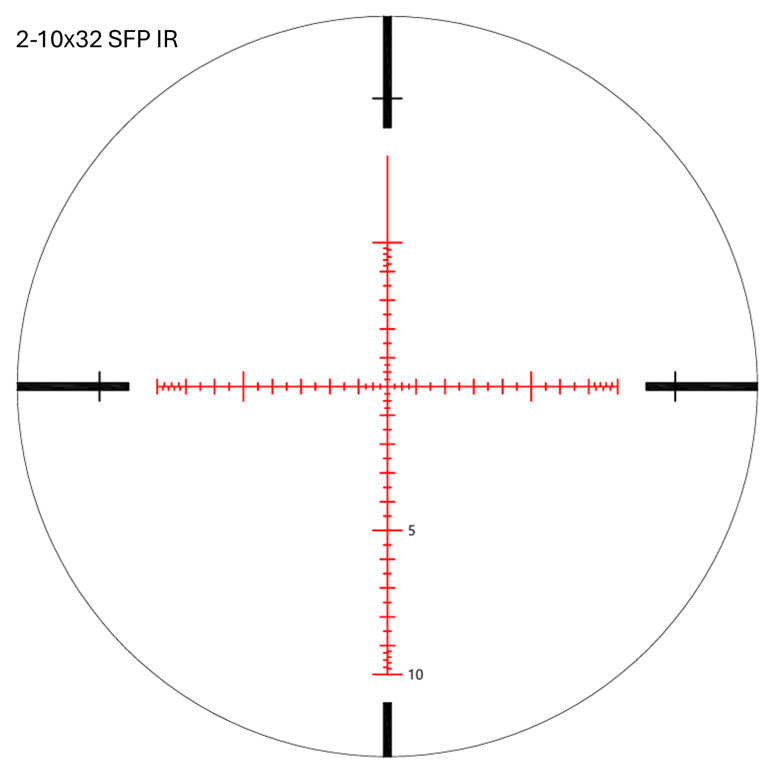

SS2
The PRECISION ED 2-10x32 SFPIR uses a Mil line reticle offering 0.25 aim points within the centre cross.
This reticle is designed for the sport of HFT and is ideal for hunting and target shooting.
Positioned in the second focal plane it remains constant size in the image. The spacings are true at 10 X magnification.
Specifications:
Exact specifications are subject to change - please check sales information for latest details.
PRECISION ED
2-10x32 SFPIR
Model: ED30210S
Magnification: 2-10 x
Scope Tube Diameter: 30mm
Lens Coating: Green multi coated
Reticle Type: Etched SS2
Ocular Lens Diameter：36 mm
Objective Lens Diameter：32 mm
Exterior Finish: Matte Black
Mounting Length: 124 mm
Objective/Field of View/ 100 yds: 62.9 -12.6 feet （12°-2.4°）
Exit Pupil: 12 mm – 3.2 mm
Eye Relief: 90mm-85mm
Diopter Adjustment: ±2.5
Adjustment Click Value: 0.1 MRAD
Max. elevation adjustment range: 34 MRAD
Max. windage adjustment range: 29 MRAD
Parallax correction: <10yds-∞
Length: 9.92″, (252.0mm)
Weight: 587 grams / 20.7oz
PRECISION ED
2-10x32 FFPIR
Model: ED30210
Magnification: 2-10 x
Scope Tube Diameter: 30mm
Lens Coating: Green multi coated
Reticle Type: Etched SS1
Ocular Lens Diameter：36 mm
Objective Lens Diameter：32 mm
Exterior Finish: Matte Black
Mounting Length: 124 mm
Objective/Field of View/ 100 yds: 62.9 -12.6 feet （12°-2.4°）
Exit Pupil: 12 mm – 3.2 mm
Eye Relief: 90mm-85mm
Diopter Adjustment: ±2.5
Adjustment Click Value: 0.1 MRAD
Max. elevation adjustment range: 34 MRAD
Max. windage adjustment range: 29 MRAD
Parallax correction: <10yds-∞
Length: 9.92″, (252.0mm)
Weight: 587 grams / 20.7oz
