ZENITH ED Series
The ZENITH ED series of scopes use extra-low dispersion (ED) glass, which effectively eliminates chromatic aberration (colour fringing), delivering sharp, natural images with accurate color reproduction. Combined with 34 mm tube, 6X Zoom and large adjustment range, precise turrets. All Calibre shock rated / water / fog resistant construction make these a great choice for target shooting or hunting.

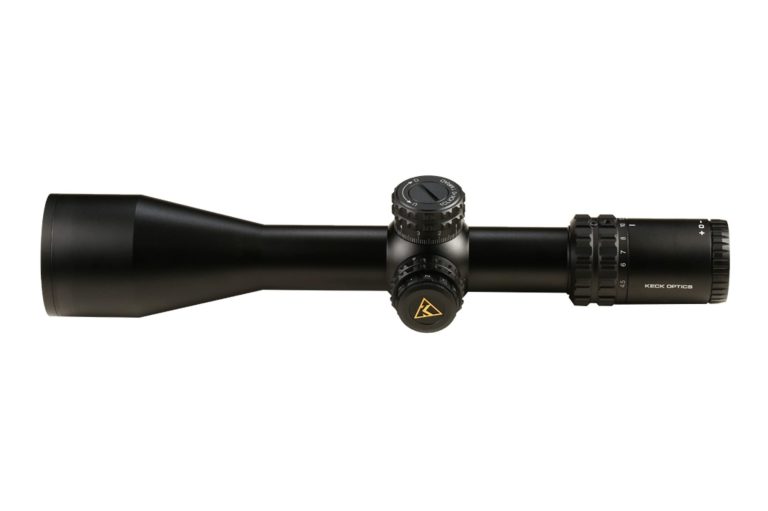

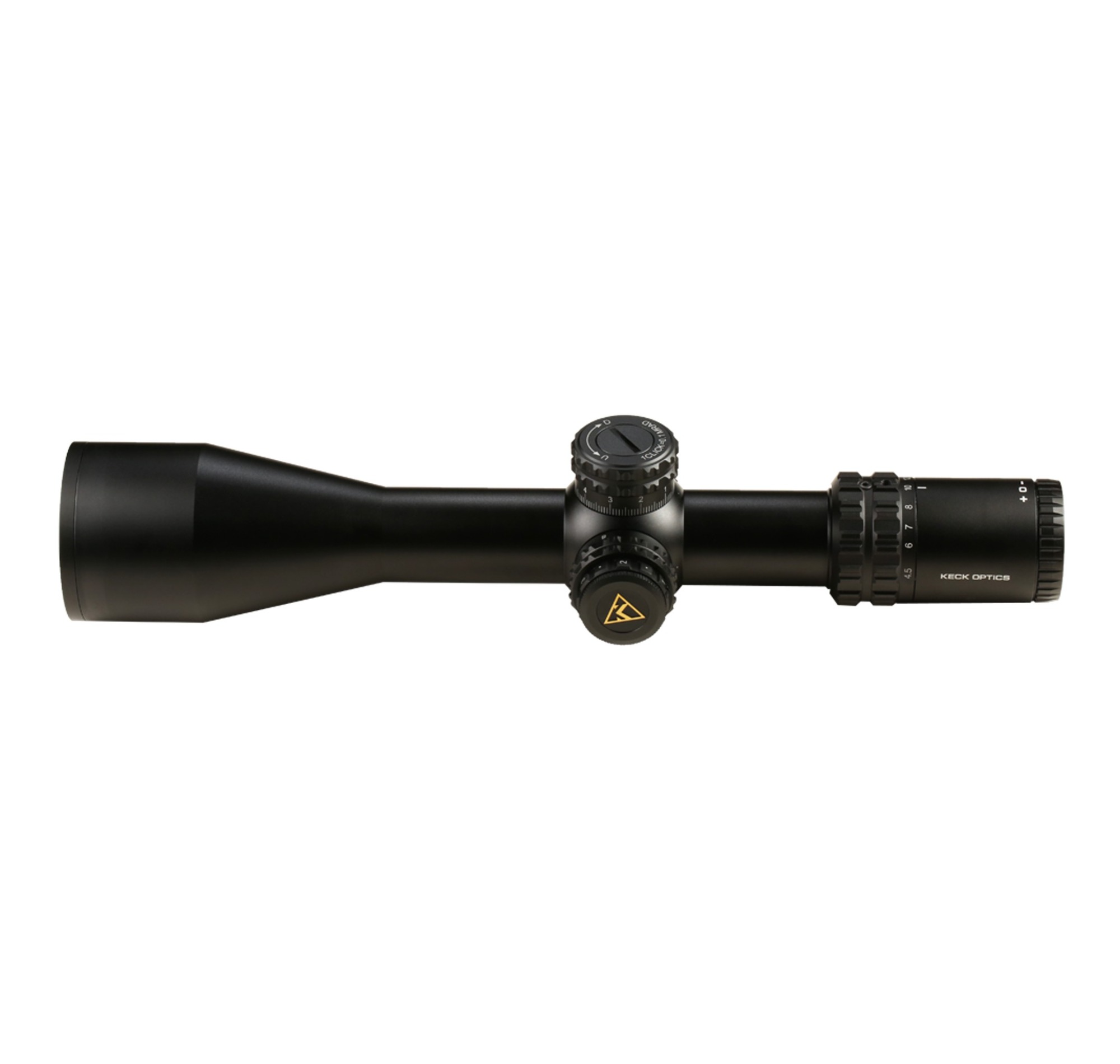

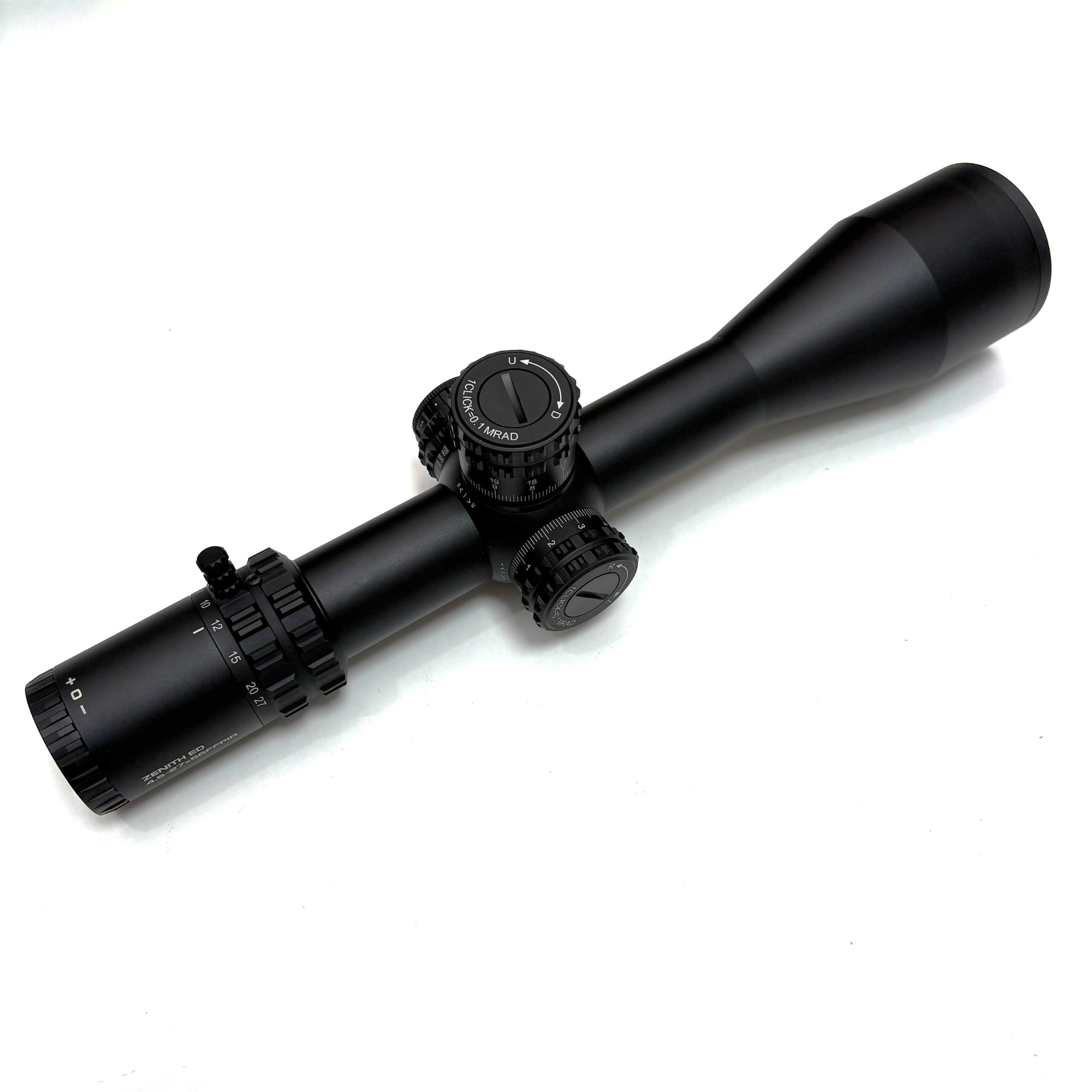

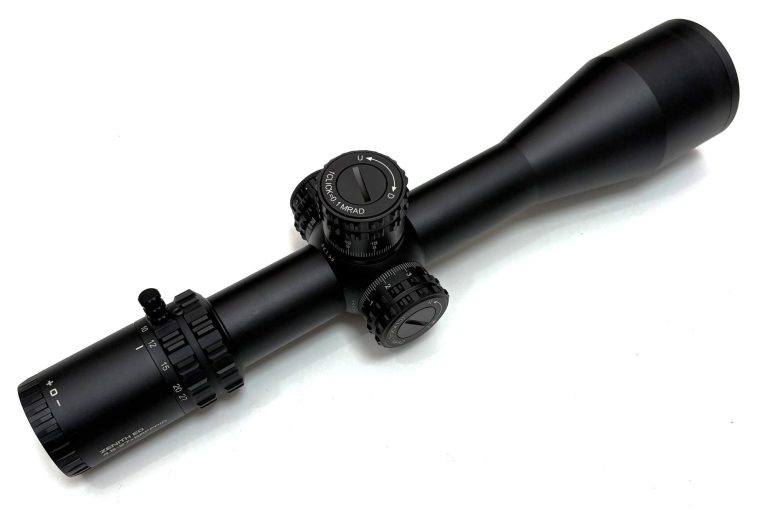

ED 4.5-25x56 FFP IR
ED34427
First Focal Plane (FFP) Design: The reticle is positioned on the first focal plane, scaling proportionally with magnification, allowing for precise range estimation and ballistic compensation at any magnification level.
ED Optical System: Uses high-quality optical glass and fully multi-coated lenses, delivering exceptional image clarity and color fidelity, achieving over 91% light transmission.

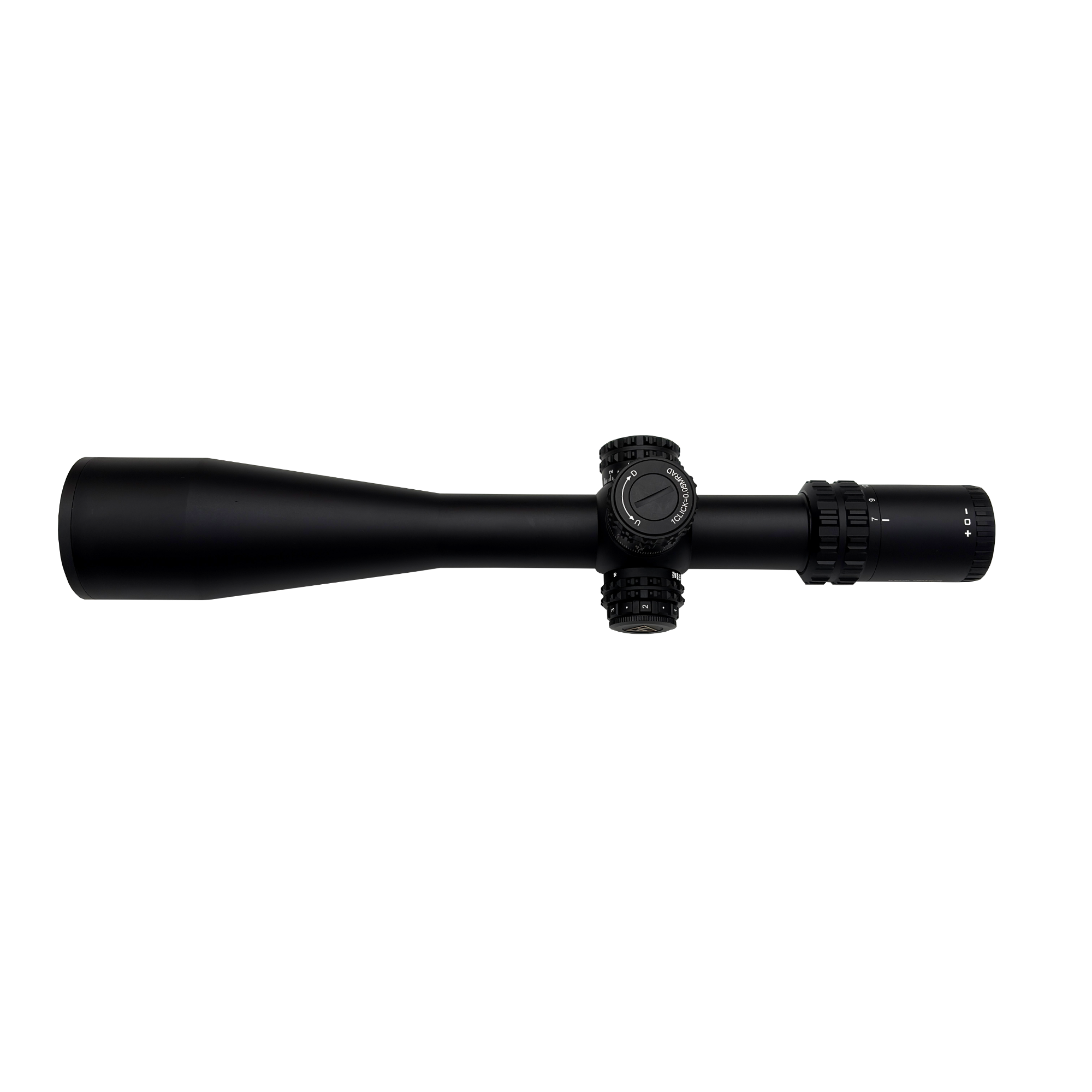

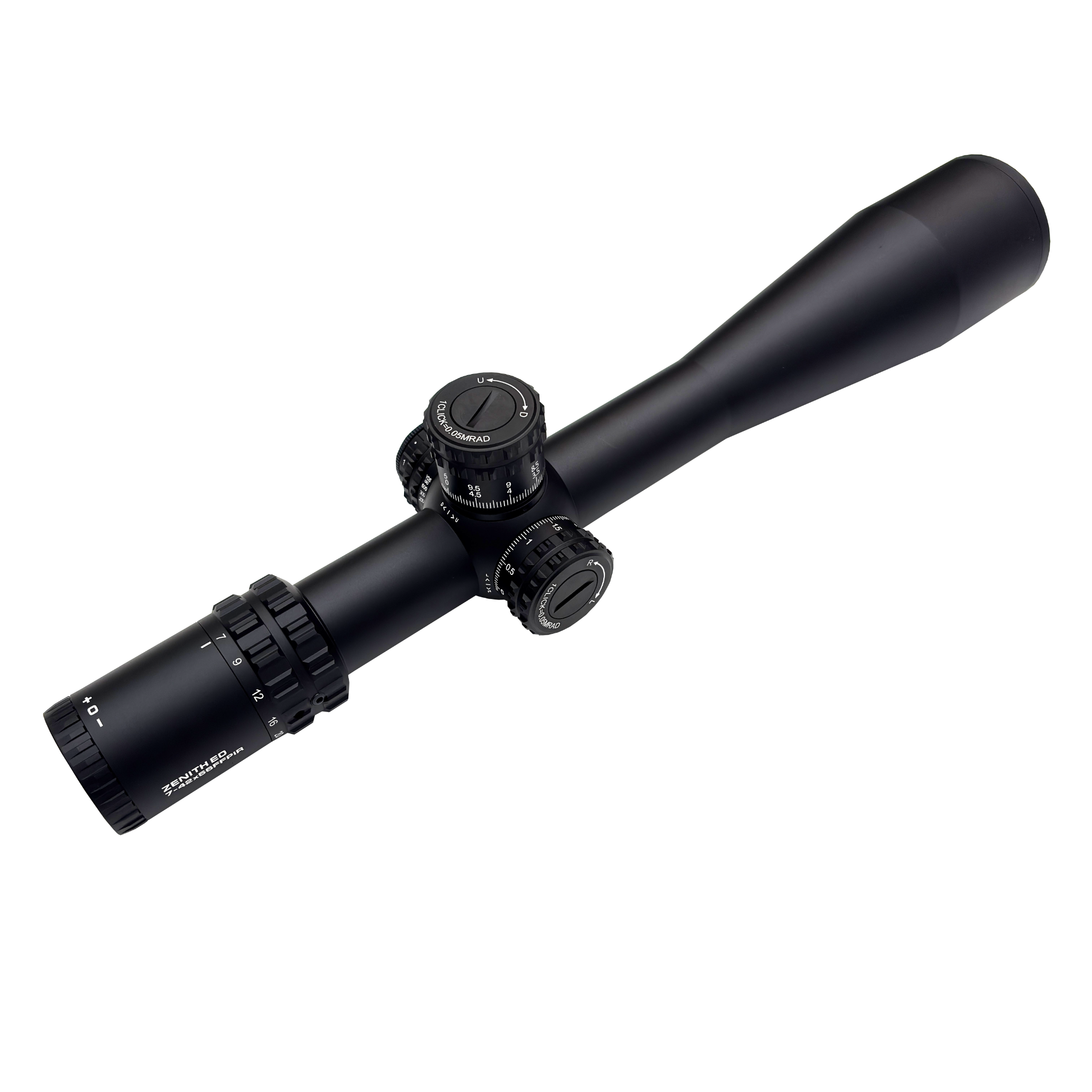

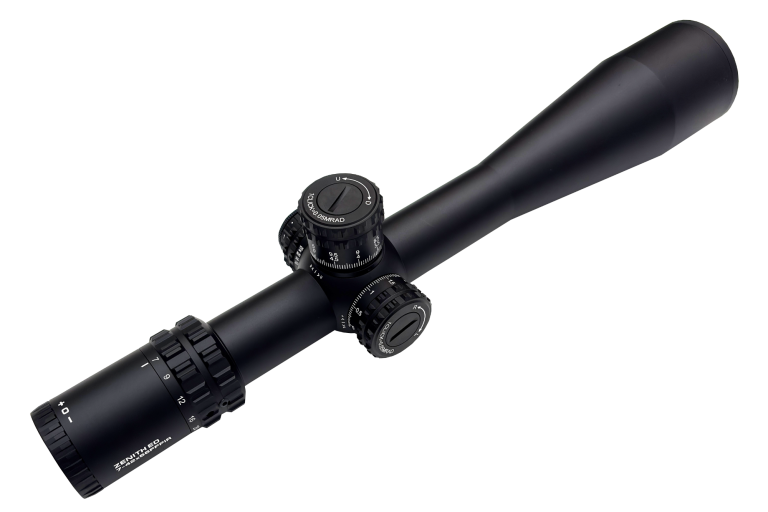

ED 7-42x56 FFP IR
ED34742
First Focal Plane (FFP) Design: The reticle is positioned on the first focal plane, scaling proportionally with magnification, allowing for precise range estimation and ballistic compensation at any magnification level.
ED Optical System: Uses high-quality optical glass and fully multi-coated lenses, delivering exceptional image clarity and color fidelity, achieving over 91% light transmission.
RETICLE CHOICES
Each model has a precision eteched reticle designed to maximise the optical range of the scope.

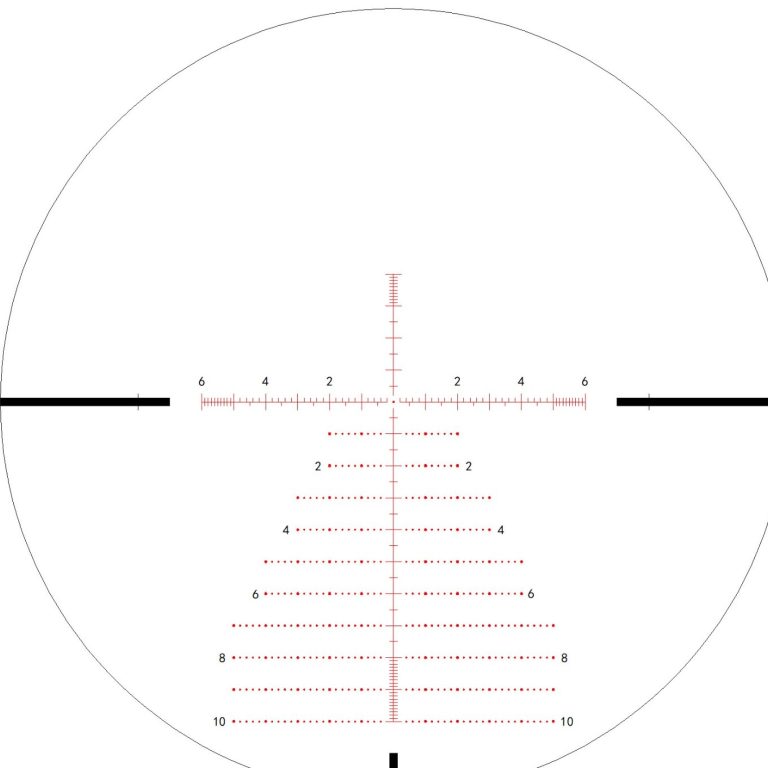

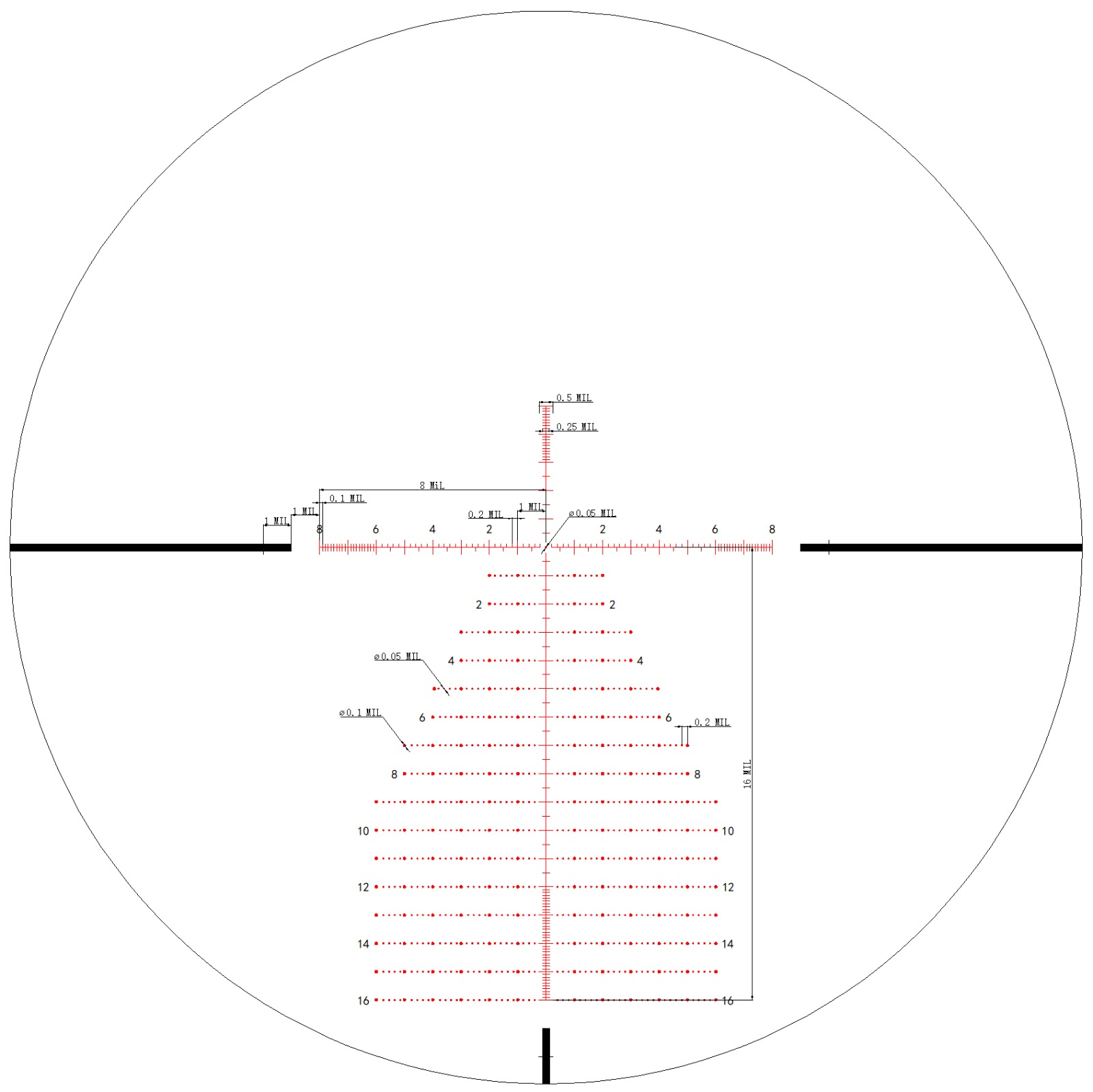

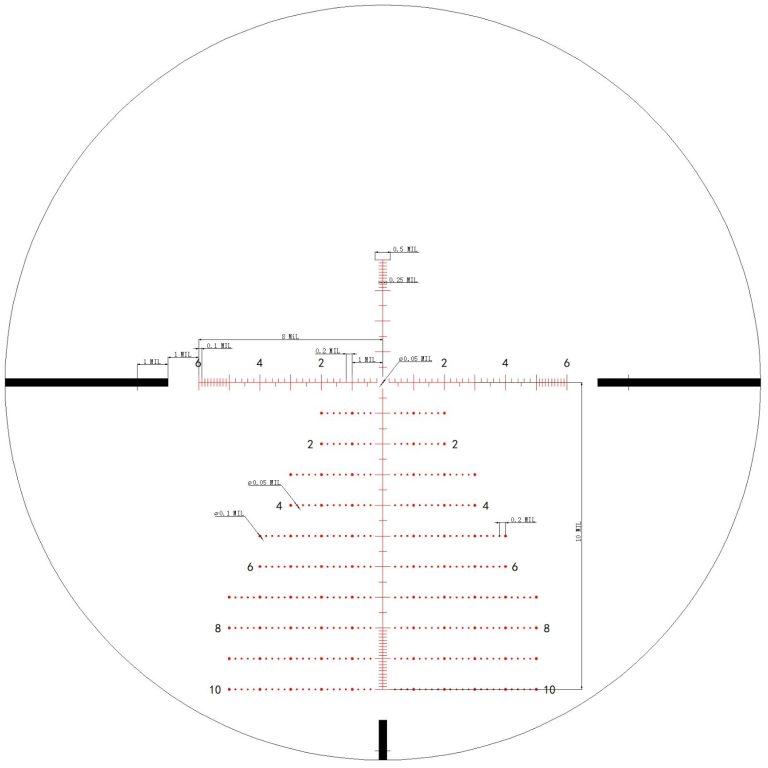

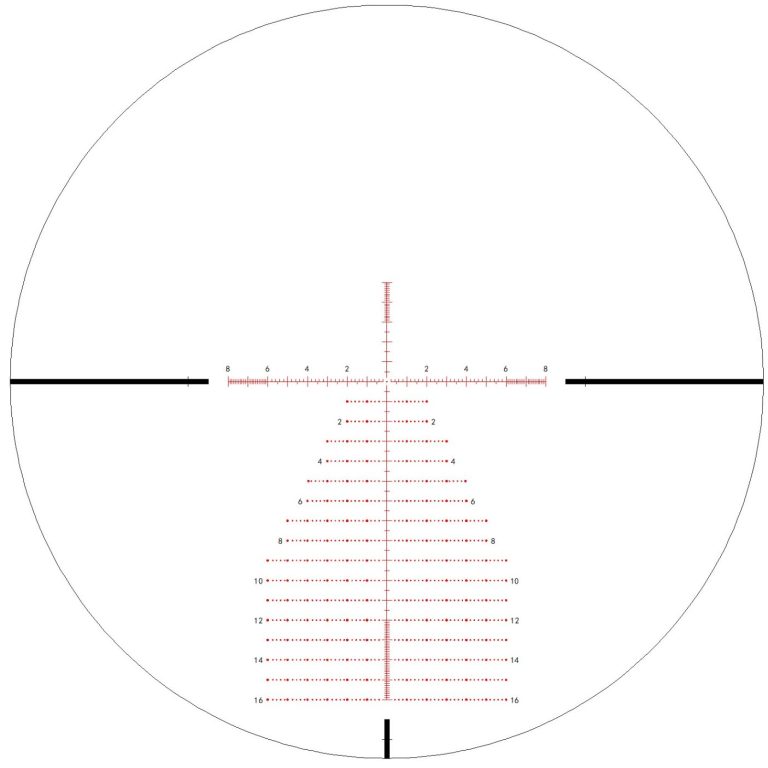

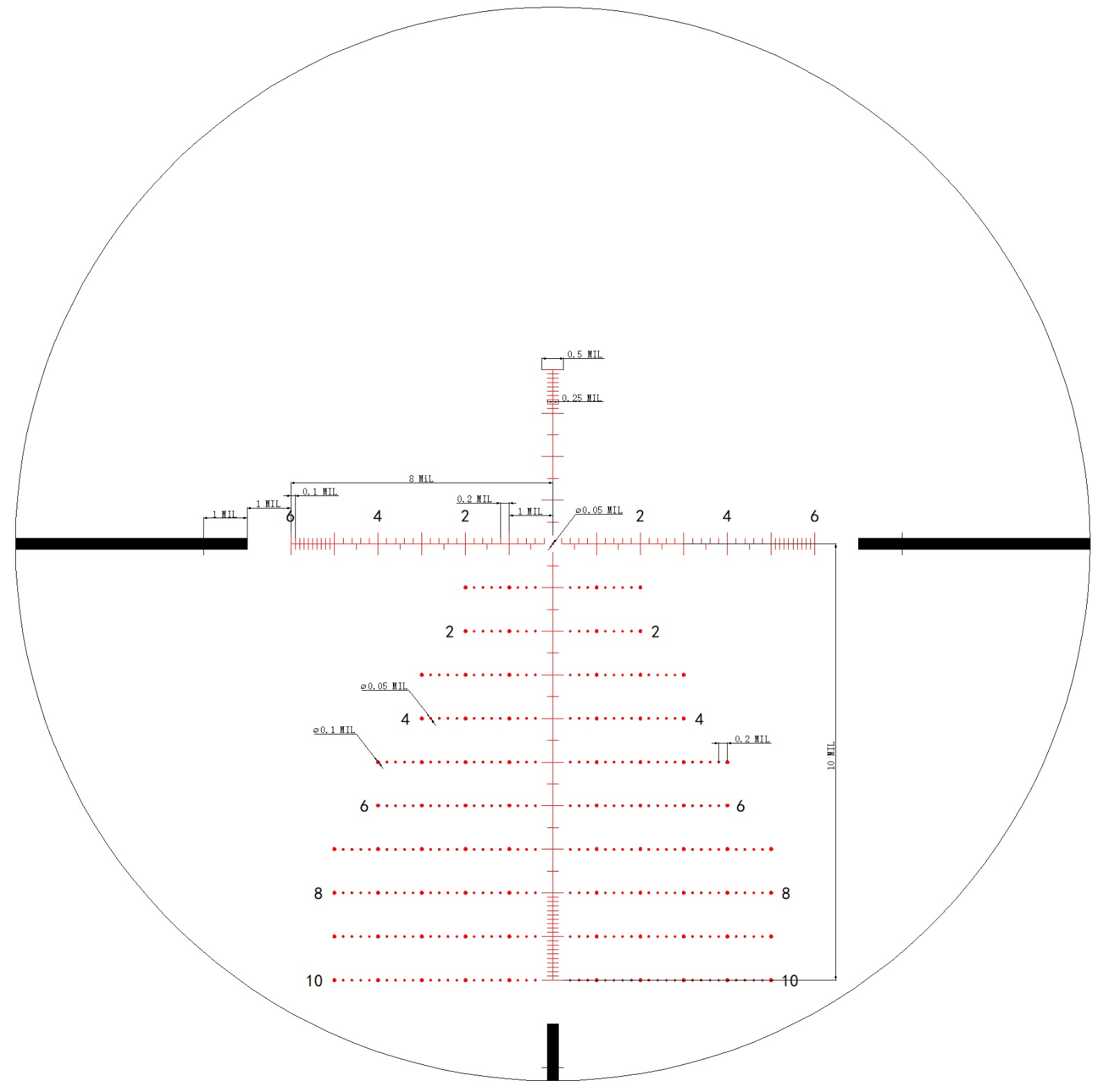

G4A
MIL Line with centre dot.
Illuminated FFP reticle.
Available in:
Precision ED 4.5-27x56 FFP
Specifications:
Exact specifications are subject to change - please check sales information for latest details.
ZENITH ED
4.5-27x56 FFPIR
Model: ED342427
Magnification: 4.5-27 x
Scope Tube Diameter: 34 mm
Lens Coating: Green multi coated
Reticle Type: Etched
Ocular Lens Diameter：38 mm
Objective Lens Diameter: 56 mm
Exterior Finish: Matte Black
Mounting Length: 150 mm
Objective/Field of View/ 100 yards: 3.43°- 0.57°
Exit Pupil: 9 mm – 2.36 mm
Eye Relief: 96mm-95mm
Diopter Adjustment: ±2.5
Adjustment Click Value: 0.1 MRAD
Max. elevation adjustment range: 26.18 MRAD
Max. windage adjustment range: 26.18 MRAD
Parallax correction: <10yds-∞
Length: 348.0mm (13,7 ")
Weight: xxx grams / xx oz

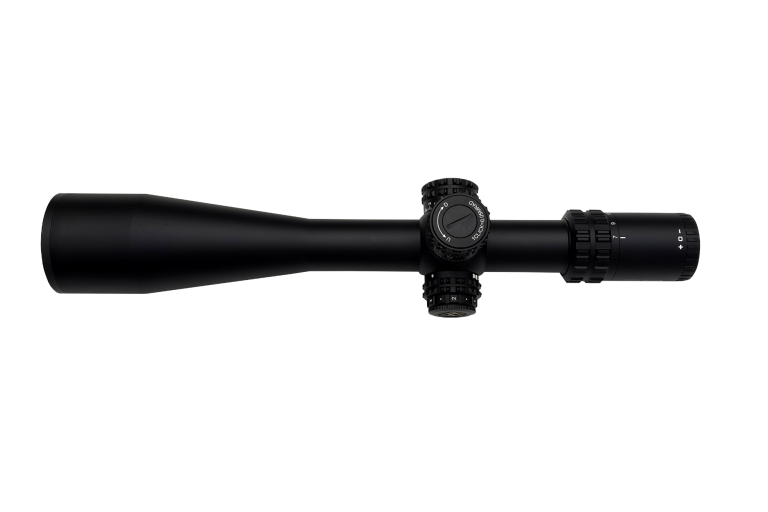

ZENITH ED
7-42x56 FFPIR
Model: ED34742
Magnification: 7-42 X
Scope Tube Diameter: 34 mm
Lens Coating: Green multi coated
Reticle Type: Etched
Ocular Lens Diameter：38 mm
Objective Lens Diameter: 56 mm
Exterior Finish: Matte Black
Mounting Length: 200 mm
Objective/Field of View/ 100 yards: 3.43°- 0.57°
Exit Pupil: 8 mm – 1.33 mm
Eye Relief: 95mm (3.74")
Diopter Adjustment: ±2.5
Adjustment Click Value: 0.05 MRAD
Max. elevation adjustment range: 23.272 MRAD
Max. windage adjustment range: 23.272 MRAD
Parallax correction: <10yds-∞
Length: 402 mm (15.8 inches)
Weight: 975 grams / 34.4 oz
