NOCTIS N5L
Keck thermal imager scope NOCTIS N5L
The NOCTIS N5L is a high-performance intelligent thermal imaging scope featuring AI-powered target recognition, automatic tracking, and intelligent ballistic calculation for fast target detection and improved shooting accuracy.
Equipped with a 640×512 resolution VOx thermal sensor with a 12μm pixel pitch and NETD ≤20mK, it delivers clear and detailed thermal images even in low temperature-contrast environments. Its compact and lightweight design, combined with all-weather capability, makes it an ideal solution for military, hunting, outdoor exploration, and search-and-rescue applications.
TECHNICAL SPECIFICATIONS
Type: VOx
Pixel: 640×512
CrossPixel spacing: 12um
Wavelength range:8~14um
NETD: ≤20mk
Focus:35mm/F1.0
FOV:12.5°x10°
Focusing method: Manual
Monitor: OLED,0.39″,1024×768
Eyepiece Parameter: 40mm/6mm
Magnification: 1.8x~7.2x
Diopter Adjustment: -5D~+5D
Laser rangefinder: ranging from 5 to 1200m
Electronic compass/motion sensor: support
Wi-Fi: support
Frame Rate : 25Hz
Image Correction: auto/manual
E-zoom: 4x
Hot spot tracking: support
Reticle: support
Palette: White heat, black heat, red heat
mage transmission: WiFi real-time image ansmission,photography,and video.
Memory: 32GB
Photos: support
Video: support
Battery Type:18650 (800mAh ) Rechargeable lithium battery, replaceable.
Battery workingtime: 26h (25°C)
External power supply: DC5V(USB Type-C
Data interface: Type-C

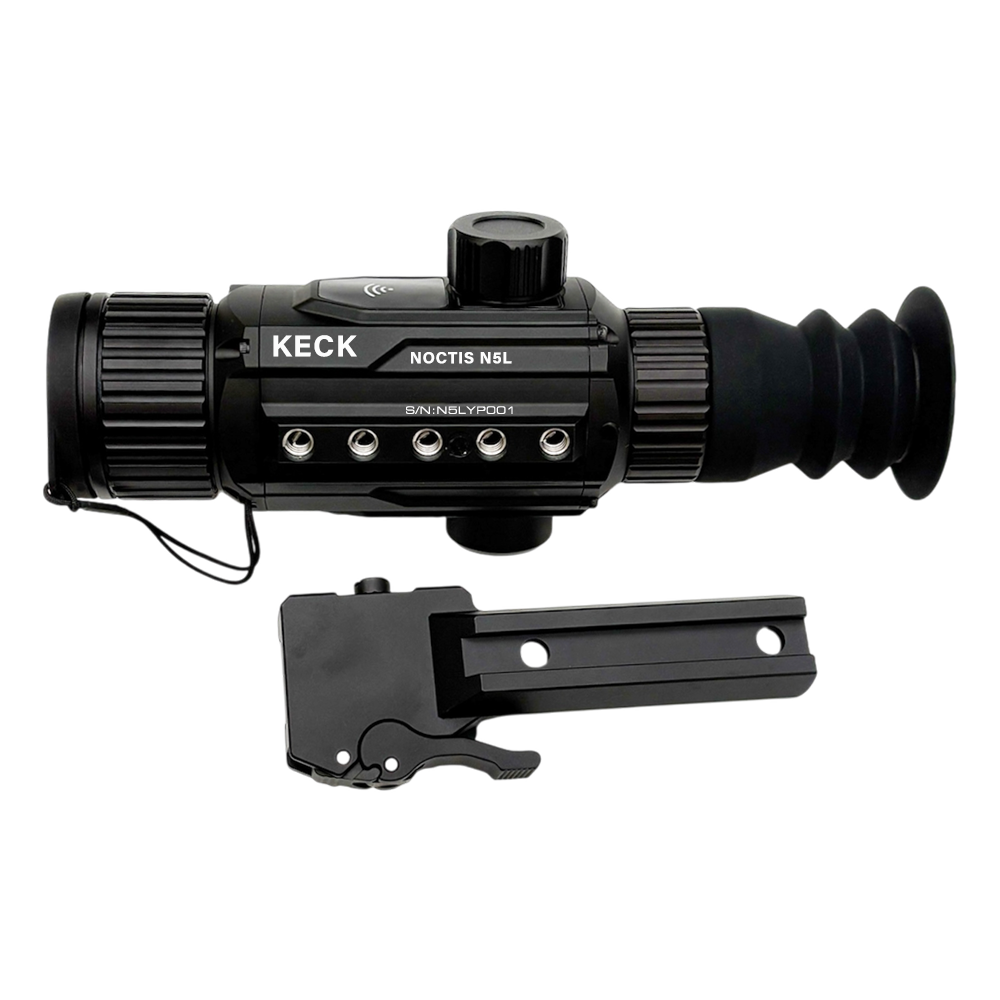

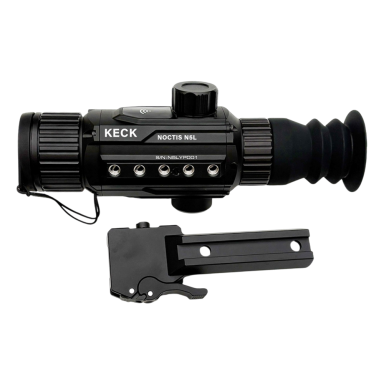

Installation interface: Quick-Release Brackets
Dimension(mm): 205x77x71mm
Weight(g): 512g
Working temperature: -20~~-+50°C
Storage temperature: -40°C-+70°C
Max.RecoilPower: 1000g/ms
Capsulation: IP67
